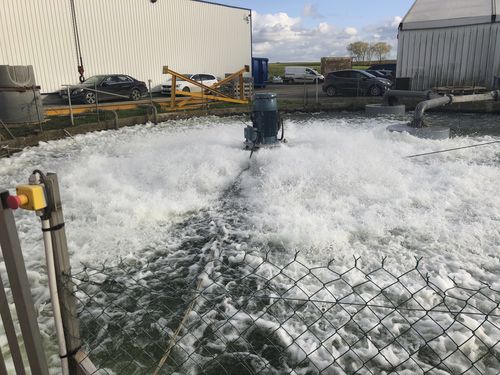

Floating aerator AQUAFEN®

surfacefor wastewater treatmentfor wastewater treatment plant

Floating surface aerator at high speed Particularly suited to buffer tanks, activated sludge, SBR, MBR and aerated lagoons. Made and assembled in France. The AQUAFEN® is a fast floating aerator with direct coupling.Equipped with an ultra-durable HDPE rotational moulded float, it is robust, requires little maintenance and does not require any complex installation procedure. It is available in a 1000 rpm and 1500 rpm version. Ease of handling Simple to install Optimised transportation (removable float) Low maintenance costs High durability French design and manufacture IE3 energy class motors Patented system (Patent no. 7817925) The AQUAFEN® is made up of the following groups of equipment: The motor block (IE3 motors with reinforced protection and sealing and motor plate); The propulsion unit, consisting of a propeller with a shaft and a rotoflector or a single screw (depending on the turbine model); The float, made up of unsinkable, ultra-durable and non-corroding rotomoulded HDPE box assemblies mounted on a stainless steel structure; The float – highly resistant to shocks and to any form of mechanical or chemical attack – keeps the aerator perfectly buoyant and stable under all operating conditions. Lateral suction for shallow tanks; Elongated duct for very deep tanks; Cover to reduce noise and spray discharges; 4 or 8 pole motor (1000 or 1500 rpm); Option of a stainless steel float; Slinging and fastening kits; Product also available for rental.
