Electrical network analyzer GOOSEMeter One

handheldreal-timedata acquisition

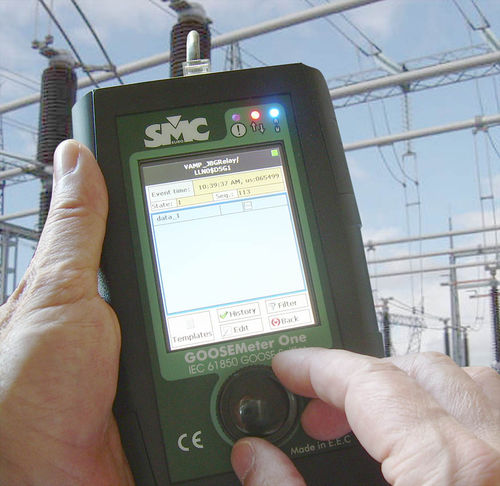

The GOOSEMeter One is an easy to use, hand held instrument that will instantaneously display the ongoing GOOSE traffic when plugged into an IEC-61850 substation’s control bus LAN Description Recent, active and outdated datasets are easily identified, and their message contents can be labelled, cathegorized and filtered by the user for quick evaluation and diagnostics. The GOOSEMeter One’s outstanding portability allows easy, ultra-fast verification of the network’s topology and wiring integrity at any spot in the substation. The GOOSEMeter One is a READ ONLY instrument, which ensures risk-free, absolutely inocuous operation over the substation’s network. CHARACTERISTICS Windows CE operating system Internet-based software updates RJ-45 female LAN connector USB 2.0 100-260 Vac 50/60 Hz power adapter Weight: 0.4 kg Dimensions: 110 x 184 x 26 mm CE Mark APPLICATIONS Real-time inspection of IEC-61850 dataset lifecycle GOOSE message contents analysis Substation’s twisted-pair cabling verification
