Biogas analyzer SWG100 Bio

oxygencarbon dioxidemethane

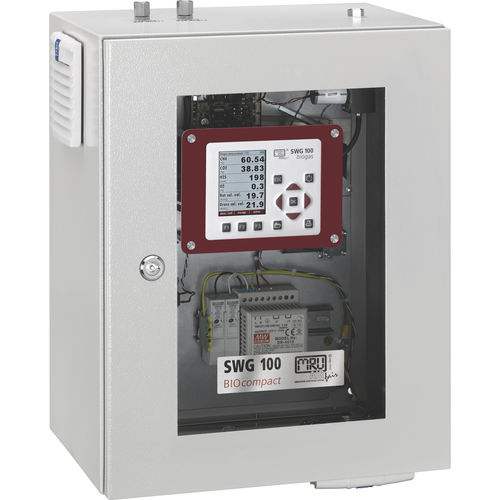

The new SWG100BIOcompact is a cost effective fixed biogas analyser suitable for farm based AD plants. - Single or dual sample point - 02, CH4, CO2% and H2S measurements - Timed and manual sampling - Integrated gas pump and water trap with auto-drain function - 4-20 mA , modbus and profibus outputs - Plug and Play pre-calibrated user replaceable sensors - Low cost of maintenance, easy to operate Description The SWG100 BIOcompact is a cost effective fixed biogas Analyser ideal for use on AD plant and water treatment plants. The biogas analyser can be configured to measure Oxygen (02%), Methane ( CH4%), Carbon Dioxide(CO2%) and Hydrogen Sulphide (H2S) from a single or dual sampling point. The system automatically measure up to 24 times a day (with user defined intervals) or on demand by simply pressing a button. This features allow the operator to take additional gas readings as required outside the timed measurement sampling programme. The Biogas readings are automatically stored to the internal SD card for easy transfer to a PC for future analysis. No special software is required as data are saved in CSV format. The system offers standard RS 485 and Modbus communications, and optional 4 x 4-20 mA analogue output and profibus communication for remote data transfer. The SWG100 BIOcompact is easy to operate, self install and with minimal service cost. Due to the low cost of purchase it is a valid alternative to a portable biogas analyser . Although designed for matching the needs of small or reduced scale AD plants, the SWG100BIOcompact offer many features that are common in more expensive gas analyser system.
