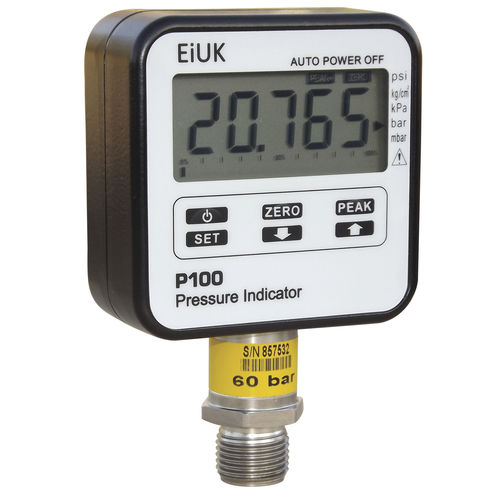

Pressure gauge with LCD display P100 series

threadedelectronictest

The P100 is an high accuracy digital pressure testing gauge suitable to be used as pressure calibrator or pressure indicator in many process applications. Features - Ranges from -1 bar trough 2500 bar - ± 0.05% of Full Scale Accuracy - 5 digits display resolution with % bargraph indication - 5 selectable pressure units mbar, bar, Kpa, Kg/Cm2, psi - Filter, Zero, Tare and peak and valley functions Description The P100 is an high precision digital pressure gauge with accuracy of 0.05 % FS which is available in pressure ranges from -100 to 100 mbar trough 0 to 2500 bar. This digital pressure gauges features 5 selectable pressure units, zero tare and peak hold functions, and a large and easy to read display with 5 digits resolution. The P100 can be supplied as standalone process indicator or together with our range of pressure calibration hand pumps and pressure comparators to become a cost effective pressure calibrator solution. Pressure Ranges A wide choice of pressure ranges is available from -100 to 100 mbar trough 2500 bar with a choice of both relative(gauge) or absolute pressure. Please see Specification TAB Accuracy The P100 digital pressure gauge have an accuracy of 0.05 % FS for all the standard pressure ranges. Pressure Units The display of the P100 features 5 pressure units which are user selectable from keyboard including: mbar, bar, psi, kg/cm2, mPa Display High contrast and easy to read 5 digits resolution LCD display with bar graph for visual reference
