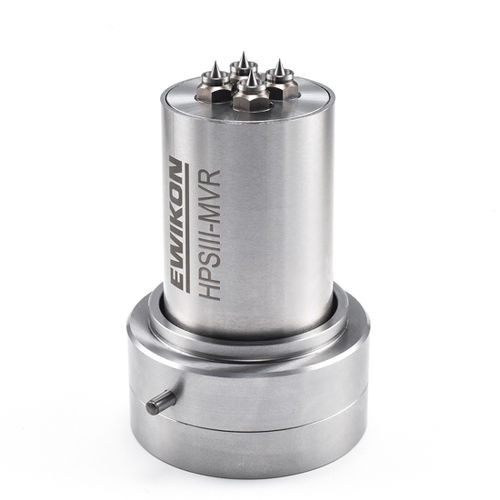

Hot runner nozzle HPS III-MV
for meltmultidrop

hot runner nozzle
hot runner nozzle
hot runner nozzle
hot runner nozzle
hot runner nozzle
Add to favorites
Compare this product


Characteristics

Function
hot runner
Fluid
for melt
Stream
multidrop
Orifice diameter

3 mm, 4.5 mm, 6 mm, 9 mm
(0.12 in, 0.18 in, 0.24 in, 0.35 in)

Pressure

2,000 bar
(29,007.5 psi)

Description

EWIKON hot runner nozzles come with a multitude of available flow channel diameters, nozzle lengths and gating options offering utmost flexibility for mould designers. *Process-reliable through direct heating Coil heaters and thermocouples directly integrated into precision-machined cutouts in the melt bearing pressure tube. Very stable heating with minimised loss resulting in an even temperature profile along the whole length of the nozzle. The even heating of all nozzles guarantees a high process reliability and an excellent system balance. *Hardened pressure tubes For melt pressures up to 2000 bar. Wear-resistant threads for problem-free repeated disassembly of tip insert. *Easy maintenance and replacement ​​​​​​​Front installation for easy access and replacement of nozzle after dismantling of cavity plate. Exchangeable tip inserts, heaters and thermocouples. *Stainless steel protective tube Prevents damage to the heater. *Quick colour changes Melt seal directly at the gate. Only a minimum melt volume needs to be exchanged. *Various gating options allow utmost flexibility in gating point position and design. -Gating with heat conductive tip -Valve gating -Gating with open flow channel -Various versions of gate bushes and screw-on gate bushes including overdimensioned versions to adapt to free form contours. *For vertical multi-gating of parts. *Small parts can be gated simultaneously with close distances between cavities. Multi-point gating of single parts is possible as well.
