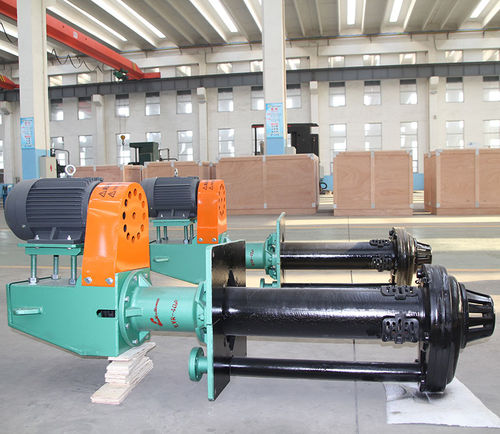

Slurry pump EVM-40P
semi-submersiblecentrifugalfor the chemical industry

slurry pump
slurry pump
slurry pump
slurry pump
slurry pump
Add to favorites
Compare this product


Characteristics

Fluid
slurry
Priming
semi-submersible
Technology
centrifugal
Domain
for the chemical industry, for the mining industry, for the metallurgical industry
Applications
for marine dredging, for washing, handling, sump, for harsh environments, for desulfurization
Material
metal
Protection level
abrasion-resistant, chemical-resistant
Other characteristics
belt-drive, high-efficiency, high-performance, rugged, vertical
Flow

Max.: 43.2 m³/h
(1,525.5936 ft³/h)

Min.: 17 m³/h
(600.34933 ft³/h)

Head

Max.: 28.5 m
(93'06" )

Min.: 4 m
(13'01" )

Power

Max.: 15 kW
(20.39 hp)

Min.: 0 kW
(0 hp)

Description

The Vertical Slurry Pump EVM(R) Series pumps are centrifugal and vertical slurry pumps. These are submerged in sump during application. These devices are designed to deliver a highly corrosive, huge substances and have an intense density slurries. The sump pumps are available for handling abrasive or corrosive, dense slurry with large particle size. It has an housing of EVM type pumps are built in a wear-resistant metal. The wear parts are made from a high chromium for the EVM series and the rubber lined is designed for the EVMR series. The vertical slurry pumps transmission shaft and suction pipe could be an option with accordance to fluid external of the slurry pool. This tool can possibly work under a fine status and various speed.
