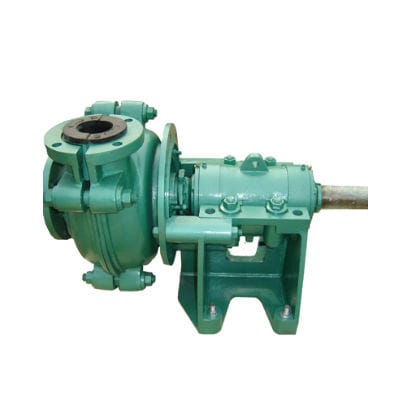

slurry pump / with electric motor / centrifugal / for wastewater treatment
EHR-2C Excellence Pump Industry Co.,Ltd.

{{requestButtons}}

Characteristics

  • Media:

    slurry

  • Operation:

    with electric motor

  • Type:

    centrifugal

  • Domain:

    for wastewater treatment, for the mining industry

  • Other characteristics:

    high-efficiency, multi-stage, high-performance, for desulfurization, chemical-resistant, wear-resistant, cantilevered, belt-drive, for harsh environments, for harsh environments, handling, for washing, elastomer-lined, for marine dredging

  • Flow:

    Min.: 36 m³/h (1,271.328 ft³/h)

    Max.: 75.6 m³/h (2,669.7888 ft³/h)

  • Head:

    Min.: 13 m (42'07")

    Max.: 39 m (127'11")

  • Power:

    Min.: 0 kW (0 hp)

    Max.: 30 kW (40.79 hp)

Description

The EHR slurry pump is a horizontal, cantilevered and centrifugal model designed for handling high-density and abrasive slurries. It can be installed as part of a multistage series. The impellers are made of rubber. The frame plates feature wear-resistant rubber liners that can be replaced. There are eight different positions in which the discharge branch can be orientated.

An expeller seal or shaft gland seal may be used with this type of slurry pump. Ideal applications include mining, power, metallurgy, coal, construction materials, among others. There are various drive types, including a V-belt drive, DC connection, hydraulic couplings and a gear box reducer.
