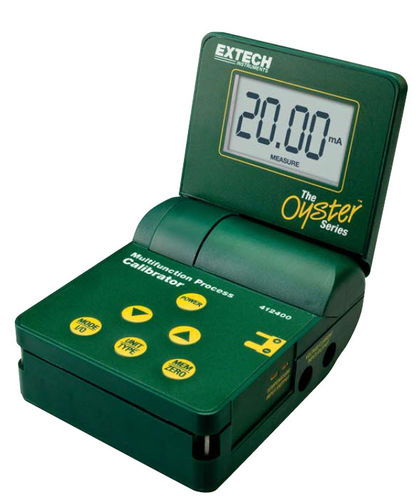

multifunction calibrator / for temperature sensors / process
412400 Extech

{{requestButtons}}

Characteristics

  • Measured physical value:

    multifunction

  • Applications:

    for temperature sensors

  • Options:

    process

  • Voltage:

    Max.: 2 V

    Min.: 0 V

Description

Features:

* Source 0 to 24mA with 0.01mA resolution
* Measure 0 to 50mA (0.1mA resolution)
* Select Type K, J, or T thermocouple for precision calibrations in °F/°C or mV
* Output 0 to 1999mV or 0 to 10.00V
* Measure 0 to 19.99V
* Single/continuous step function for Voltage and Current
* Self-contained 24V loop power supply drives current loads up to 1000Ohm
* 5 stored calibration values of each type for fast calibrations
* Complete with six AA batteries and calibration cable with spade lug terminals
