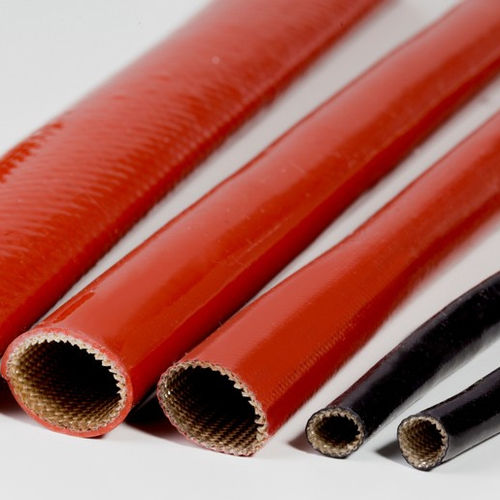

Fiberglass sleeve T.V.E. 19.70 IMQthermal protectioninsulatingbraided
Add to favorites
Compare this product
Characteristics
- Type
- thermal protection, insulating
- Structure
- braided
- Applications
- for cables, for pipe
- Material
- silicone, silicone rubber, fiberglass
- Protection level
- oil-resistant, self-extinguishing, heat/cold-resistant, heat-resistant
- Other characteristics
- flexible, silicone-coated, extruded, high-temperature treated
- Diameter
Max.: 25 mm
(1 in)Min.: 1 mm
(0 in)- Temperature
Max.: 200 °C
(392 °F)Min.: -50 °C
(-58 °F)
Description
T.V.E. 19.70 a fibreglass sleeve with a silicone rubber coating extruded over an insulating fiberglass sleeve. Our Sleeve is ideal in heavy duty applications that require outstanding mechanical and electrical properties, high temperatures, from -50° C to +200° C, high dielectric strength.
IMQ CERTIFIED for 1.5 kV, 2.5 kV and 4.0 kV.
INTERNAL DIAMETER PRODUCTION from 0.5 mm up to 25 mm
DIELECTRIC STRENGTH PRODUCTION up to kV 12.0
