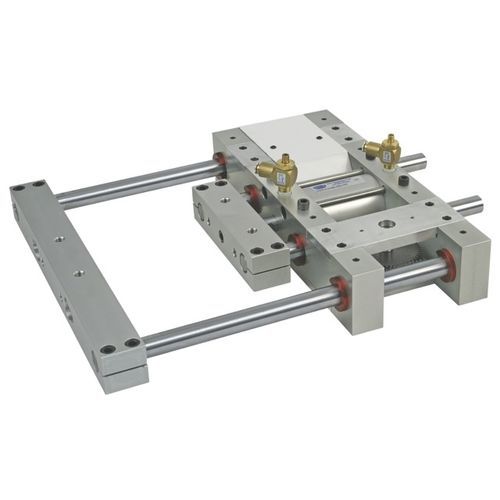

Pneumatic gripper LPG series

springparallel2-jaw

Parallel Jaw Motion for Large Parts and Long Strokes The LPG Series is a version of the EZ Series of linear slides modified for gripping. Available in multiple configurations, these grippers support heavy loads and large parts. The toolbars extend toward and retract away from each other with absolute parallelism and precise synchronous motion. This series has centering that is accurate within 0.002 inch repeatability for virtually “play free” gripping. Key Specifications Features • Available in 1 ⅛ inch and 2 inch bore sizes • Operating pressure standard at 100 psi • Operating media: compressed air • Centering accurate to within 0.002 inch repeatability • Adjustable stops for gripper jaws Technical Advantages • Max cylinder grip force of 310 lbsf. • Jaw bars can be wide stance or cantilevered. • Gripper can be mounted with the port side up or down because the end caps are machined on both the top and bottom surfaces. • Toolbars (jaws) extend toward and retract away from each other with absolute parallelism and precise synchronous motion. • Available with Viton seals for high-temperature operation.
