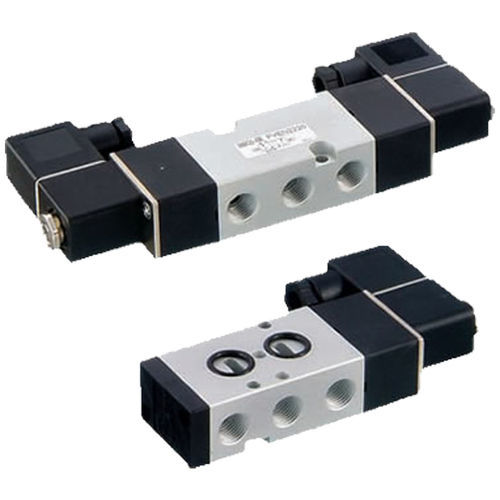

Spool pneumatic directional control valve FVEN

solenoid-operatednormally closed

G1/4-Inch, 5-Port 2-Position Valves The FVEN Series of solenoid 5-port 2-position control valves features NAMUR mounting that attaches directly to the actuator without additional manifolding. These valves are designed for high flow with single or double solenoid model options. With a low-energy consumption, the FVEN’s durable solenoid coil can operate at a 100% continuous duty cycle. Key Specifications Features • NAMUR mounting is capable of attaching directly to the actuator without additional manifolding. • Ideal for operating ø20 ~ ø80 bore cylinders • Single or double solenoid models available • Housings are precision machined and hard anodized for low friction • Low friction seals have high abrasion resistance to provide longer service life • No additional lubrication required Technical Advantages • Low minimum operating pressures deliver high internal shifting force to deliver consistently reliable operation. • Special coils have low power consumption and use DIN 43650 electrical connectors for wiring.
