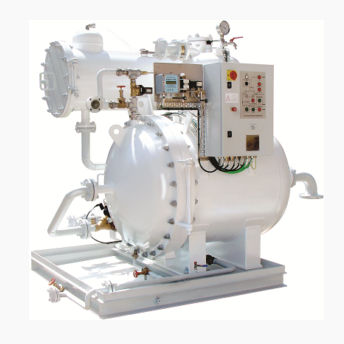

Coalescing separator CPS B MKIII + EBM 14x

oilwaterfor the petroleum industry

Flow rates range goes from 0.5 m³/h (2.2 gpm) up to 10 m³/h (44 gpm) Supplied ready to install, coming complete with pumps, valves and control panel No mobile components (with the exception of the pumps and pneumatic valves) Level control is fixed and has no float Through continuous research and development programs plus designs based on easy maintenance and maximum efficiency, PECOFacet has developed the CPS B MKIII + EBM 14x Bilge Water Separator. This model combines the PECOFacet Mpak® coalescing plate technology with innovative membranes that accomplish high efficiency removal in chemical and mechanical emulsion breaking. The unit complies IMO MEPC.107(49) regulations. The unit design is compact and adaptable to the available space on-board, light weight, and easy to maintenance. The functionality is very easy and completely automatic, with all its functions controlled through a PLC.
