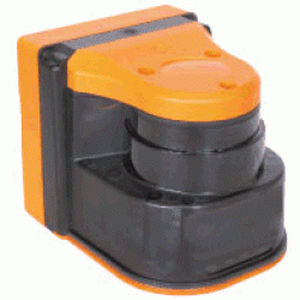

Scanning detector LS05LN

laser

Operating Principle LS05LN is an obstacle detection sensor with 785nm wavelength laser light source. It detect objects in the predefined area by scanning 180°semicircle and calculates the coordinates of the detected object by measuring its distance and angle. The product is laser class 1 safe. Area Setting 31 different area patterns and their coordinate points can be set using application software and serial communication RS232C. 3-step outputs can be selected for each area. Area Switching Bit input at terminal points switches the predefined area patterns. Malfunction Output Self-diagnostic functions continuously check laser radiation and motor rotation and supplies malfunction output upon error detection.
