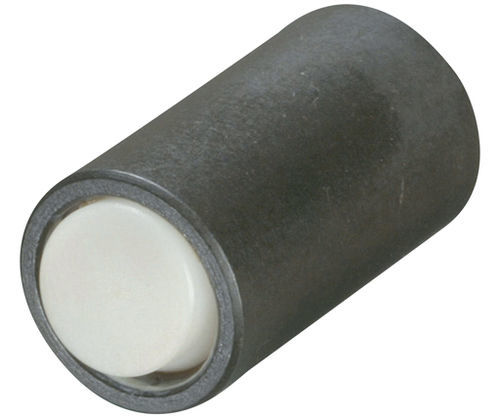

Self-aligning pad BBU-100-D

self-aligning pad
self-aligning pad
self-aligning pad
self-aligning pad
self-aligning pad
self-aligning pad
self-aligning pad
Add to favorites
Compare this product


Description

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces and is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Diameter Overall: 3/8 in. Length Body: 5/16 in. Diameter Contact Surface: 5/32 in. Standoff : 1/16 in. Degree Swivel: 28 Degrees. Thread Internal - Tap: #4-40 in. Length Thread: 1/4 in. Diameter Ball: 3/16 in.
