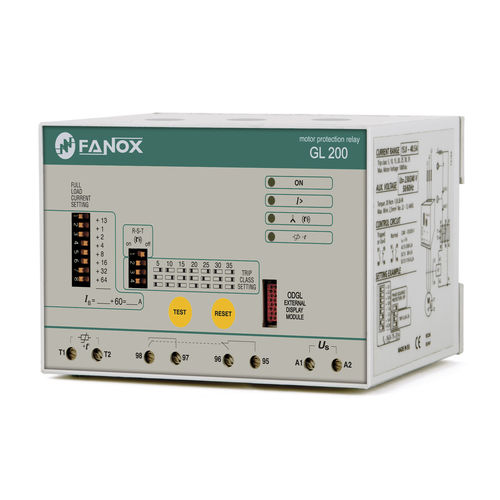

Overload relay GL 200

phase sequencephase lossphase unbalance

FANOX integral motor protection relays - gl relay is suitable for 3-phase motors between 60 to 200 A and above. Cable feed is through relay. Its thermal image is reproduced due to the accurate motor heating and cooling memory. Phase loss is detected immediately within 3s, including at reduced loads. Tripping cause is indicated visually. For 3 phase motors up to 200A, in applications such as surface mounted pumps, compressors, mixers, ventilators, elevators, cranes, industrial refrigeration and in general for those motors requiring complete protection where over temperature (by means of PTC sensor) and incorrect phase sequence protection is required. Its 7 trip classes cover all types of starting or working cycles. • For 3-phase motors from 60 to 200 A and over. Cable feed through relay. • Precise motor heating and cooling memory, reproduces its thermal image. • Immediate detection of phase loss (3 s), even at reduced load. • Visual indication of tripping cause. External Display Module By means of this plug-in optional accessory, the relay status can be seen and reset from the exterior of the electrical panel board. Easy to install. Size of a Ø22 mm push button. Suitable for motor control centres (MCC) and panel boards.
