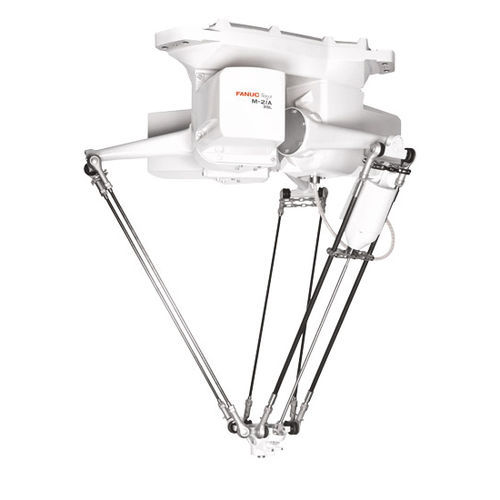

Delta robot M-2iA/3SL
4-axishandlingfor assembly

delta robot
delta robot
delta robot
delta robot
delta robot
delta robot
delta robot
Add to favorites
Compare this product


Characteristics

Type
delta
Number of axes
4-axis
Function
handling, for assembly, pick-and-place
Mounting
ceiling-mounted
Application domain
for clean rooms, for small parts, for wet environments
Protection level
IP67
Other characteristics
compact, high-speed
Payload

3 kg
(6.614 lb)

Reach

1,130 mm
(44.49 in)

Repeatability

0.1 mm
(0.0039 in)

Operating temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Noise level

74 dB

Weight

120 kg
(264.6 lb)

Description

The ultra-compact M-2 range sits at the cutting edge of high-speed small parts handling. Featuring up to 6 axes, this series of high-speed assembly robots offers infinite flexibility thanks to ultra-variable mounting positions and human hand-like versatility. Huge reach and IP69K protection as a standard feature makes this the ideal solution for more productivity in wet and clean room environments. Increased reach This long arm 4-axis model is ideal for clean room applications that require an extended envelope. IP69K protection With IP69K protection as a standard feature and capable of withstanding high pressure steam cleaning, this robot is suitable for clean room environments Fast and powerful operations Benefit from high productivity and short cycle times thanks to fast accelerating servo motors.
