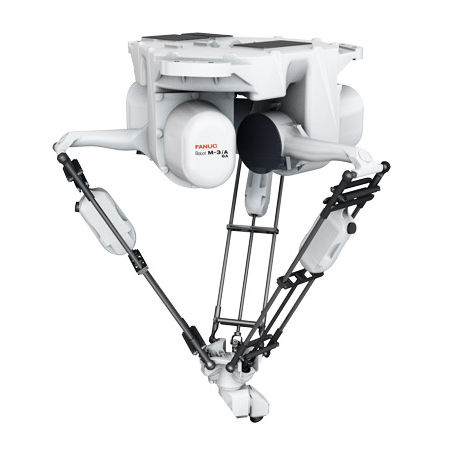

Delta robot M-3iA/6A
6-axisfor assemblypackaging

delta robot
delta robot
delta robot
delta robot
delta robot
delta robot
delta robot
delta robot
delta robot
Add to favorites
Compare this product


Characteristics

Type
delta
Number of axes
6-axis
Function
for assembly, packaging, pick-and-place
Mounting
ceiling-mounted
Application domain
for the food industry
Protection level
IP67
Other characteristics
compact, high-speed
Payload

6 kg
(13.228 lb)

Reach

1,350 mm
(53.15 in)

Repeatability

0.1 mm
(0.0039 in)

Operating temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Noise level

79 dB

Weight

175 kg
(385.8 lb)

Description

This high-speed 6-axis robot is perfect for picking, packaging and assembly. Its 3-axis wrist means it is capable of freely rotating workpieces and tools as required for assembly applications. Its clever design also means it makes best use of available workspace. 6-axis design This model's 3-axis wrist enables you to feed parts in from different sides of the workzone, increasing your useable workspace. Food option Lubricated with food-grade grease, this model features a special coating to handle acid and alkaline disinfectants, and low-pressure rinsing. Unique delta design with flexible 3-axes wrist The extreme human-like flexibility offered by the three-axis wrist enables the robot to pick up and insert parts at simple or compound angles, and twist parts into place.
