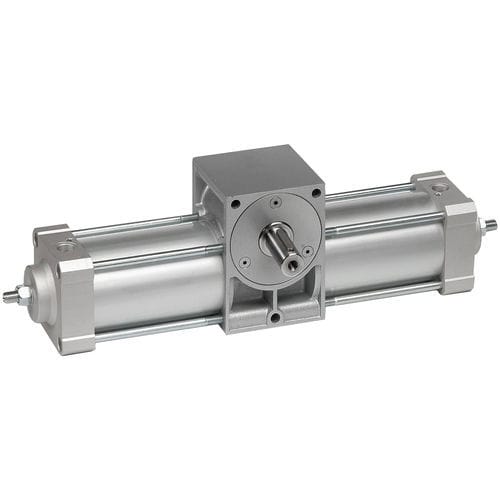

Rotary actuator T series
pneumaticrack-and-piniondouble-acting

rotary actuator
rotary actuator
rotary actuator
rotary actuator
rotary actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
pneumatic
Technology
rack-and-pinion
Configuration
double-acting
Bore

Min.: 25 mm
(0.98 in)

Max.: 100 mm
(3.94 in)

Pressure

Min.: 2 bar
(29 psi)

Max.: 12 bar
(174 psi)

Ambient temperature

Min.: -10 °C
(14 °F)

Max.: 85 °C
(185 °F)

Description

The new Rotary actuator “T” series is interchangeable with the “R” one and represents the Farbo’s attention in providing new benefits to the customer ever developing new products. Thanks to standard accessories and seals in polyurethane, "T" unit increases its flexibility and its working life also without lubrication. The body shape is clean, compact and avoids any problem to insert sensors and it gives to the actuators a modern design, suitable for all the applications.
