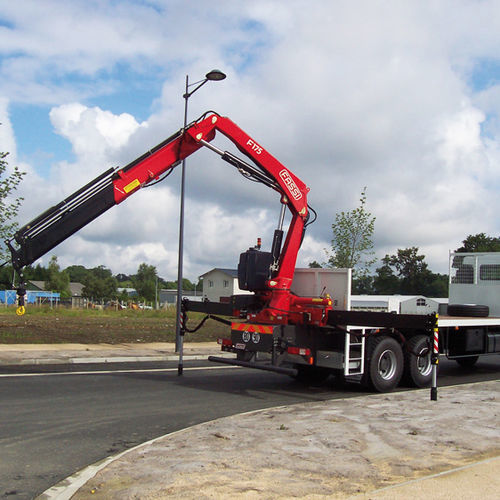

Truck-mounted crane F175A.0 series

boomfor constructionlifting

ELECTRONIC/HYDRAULIC EQUIPMENT: S800 distributor bank active version (.0): without linkage rotation 400°with rack and pinion BASE - Base and lower part of the column in cast steel for perfect stress distribution and greater resistance. The absence of welding ensures that the crane offers excellent characteristics of durability to fatigue. BOOMS GUIDE - Extension booms guide shoes, with “forced” assembly to reduce vertical and horizontal clearance, ensuring greater durability. Special guide shoes material with high sliding degree and low greasing request. TANK - Plastic tank, particularly resistant to shocks and the corrosive action of any external element. LUBRICATION SYSTEM - Centralised lubrication system of the base to guarantee easier access for maintenance and control operations. OUTRIGGER - Hydraulically extendable outriggers also in “Extra wide” and “Super Extra wide” execution, with hoses fitted inside the outrigger supports (standard only on dynamic crane version). Independent hydraulic distributor for the control of the outriggers; it can be also activated by radio control (option). Available as option manual or hydraulic tiltable outriggers. VERSION C - Crane version with a shorter secondary arm, to allow a greater height of under-hook lifting. Offers the possibility to lift especially bulky and heavy loads vertically, near the column of the crane. Automatic hooking system for the positionning of the extension booms in transport position when crane is folded behinb cab.
