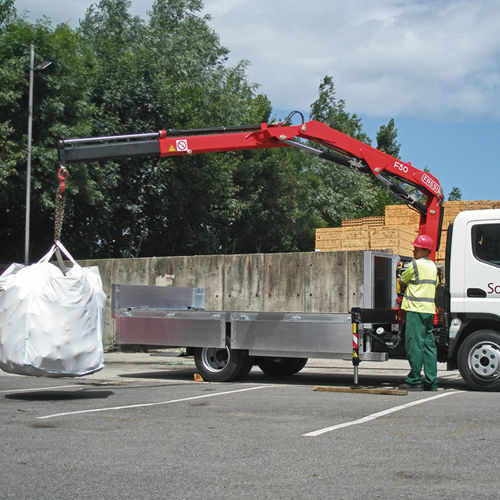

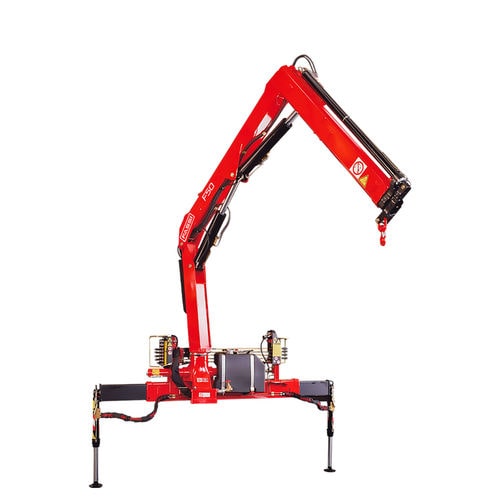

Truck-mounted crane F50A.0 series
swing-armloadingwith combustion engine

truck-mounted crane
truck-mounted crane
truck-mounted crane
truck-mounted crane
Add to favorites
Compare this product


Characteristics

Configuration
truck-mounted
Structure
swing-arm
Applications
loading
Engine type
with combustion engine
Number of axles
2-axle
Other characteristics
hydraulic
Lift capacity

30,957 lb, 31,680 lb, 33,199 lb, 33,923 lb
(14,041.9 kg, 14,369.8 kg, 15,058.8 kg, 15,387.2 kg)

Horizontal reach

5.029 m, 6.426 m, 7.849 m, 9.246 m
(16'05" , 21'00" , 25'09" , 30'04" )

Width (base)

2,100 mm
(83 in)

Total weight

615 kg, 665 kg, 715 kg, 750 kg
(1,356 lb, 1,466 lb, 1,576 lb, 1,653 lb)

Description

ELECTRONIC/HYDRAULIC EQUIPMENT: Hydrocontrol monobloc distributor bank CHARACTERISTICS: active version (.0): without linkage rotation 370° with rack and pinion BASE - Cast steel base design and the absence of elding allow for long term durability minimizing atigue and maximizing crane performance. BOOM WEAR-PADS - The cranes feature std. boom wear pads specifically designed and implemented thru the “forced” assembly process providing greater durability and service, allowing for fewer scheduled greasing requirements. TANK - Std. non corrosive plastic tank insures long term crane operation by limiting contaminants in the hyd. system. OUTRIGGER - Manual extendable tiltable outrigger also in “Extra wide“ and “Super Extra wide” execution. Optional WORK LIGHT - Powerful and versatile light that can be directed as required: helps you to work safely, even in conditions of poor natural light. Can be activated by means of the radio remote control pushbuttons (e-active) or by the user panel. SUPPLEMENTARY FUNCTIONS - Supplementary functions for the use of hydraulic accessories, protected by an exclusive Fassi system consisting of metal trays paired with highly resistant nylon guidechains. High quality hoses resistant to the external wear. WINCH - Cable-operated lifting device equipped with an exclusive, patented mechanical, torque and end stop limiter system which avoids the risks resulting from direct and indirect overload applied to the winch itself. Anti-twist cable and cable guide pulley to make easy the aligned winding of the cable on the winch drum.
