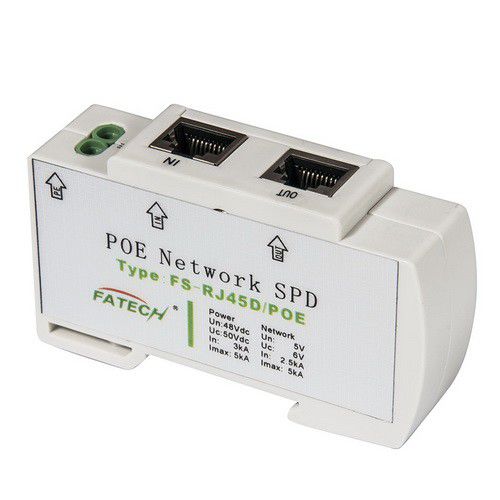

Type 1 surge arrester FS-RJ45D/POE-100

for power suppliesRJ45PoE

1. Description FATECH surge protectors for signal system are used for protection of information technology systems, and radio frequency systems, we also call signal surge protectors, or coaxial surge protectors. 2. Characteristics 1) Din rail RJ45 surge arrester, POE signal surge protector, suitable for application of POE cable-powered server, wireless AP, network cameras, network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation. 2) Adopt power supply + signal surge protection intergrated design. 3) Use high quality main component with excellent performance. 4) Small insertion loss, good trnasmission rate. 5) Low residual voltage, efficient surge protection effect. 6) Fast response, stable performance, reliable working. 7) Small size, DIN Rail installation, convenient application, maintenance free. 3. Electrical Parameters 1) Max. cont. operating voltage Uc: 64V 2) Interface: RJ45 3) Max. discharge current (8/20μs): 5KA 4) Nominal discharge current (8/20μs): 3KA 5) Type of Network: Network signal transmission system 6) Nominal voltage 50(60)Hz Un: 48V 7) Degree of protection: IP20 8) Adapt transmission rate: 100MBit/s 9) Mounting: 35mm Symmetrical rail(EN50022/DIN46277-3) 10) Response Time tA: <=10ns 11) Housing material: UL94V0 12) Operation temperature range / humidity / altitude: -40℃~+80℃/30%~90%/3000m 13) Protected Line (Pairs): +(4,5);-(7,8) (1,2);(3,6);
