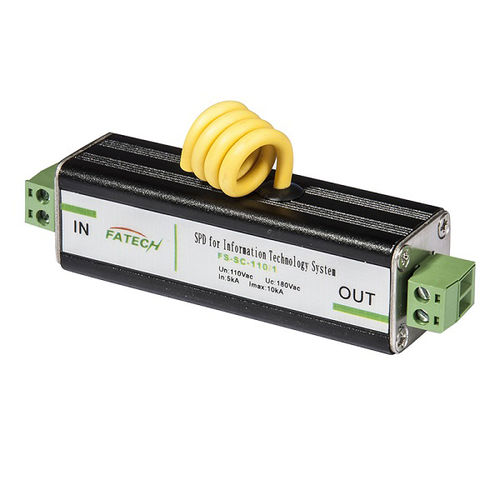

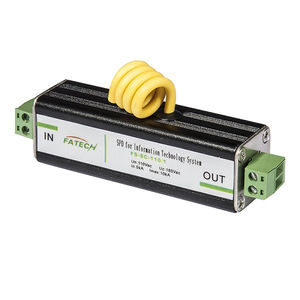

Type 3 surge protector FS-SC-120/1
for telecom applicationsfor telephone linestelecommunications

type 3 surge protector
type 3 surge protector
Add to favorites
Compare this product


Characteristics

Type
type 3
Applications
for telecom applications, for telephone lines, telecommunications
Other characteristics
with housing
Voltage

120 V, 150 V

Primary current

Min.: 0 A

Max.: 10,000 A

5,000 A

Description

1.Description Fatech Electronic (CHINA) LTD develops telecommunication lines surge arresters for protection of telecommunication systems, such as program-control switch, facsimile. This signal surge arresters with advantage of dual protection of over-current and over-voltage, excellect response time. 2. Characteristics 1) Screw Clamping data signal surge protective device applied to the surge protection for telecommunications, e.g. SPC exchangers, twisted pairs of telephone stations, dial-up lines, DDN special line. 2) Convenient mounting 3) Class C surge protection, low residual voltage 4) Built-in semiconductor, quick response 5) Low capacitance design, excellent transmission 6) Can be designed and manufactured according to special requests of clients. 3. Electrical Parameters 1) Max. cont. operating voltage Uc: 150V 2) Interface: Screw Clamping 3) Max. discharge current (8/20μs): 10KA 4) Nominal discharge current (8/20μs): 5KA 5) Type of Network: signal transmission system 6) Nominal voltage 50(60)Hz Un: 120V 7) Rated Current IL: 0.5A 8) Adapt transmission rate: 1MBit/s 9) Insertion loss: <= 0.5MBit/s 10) Response Time tA: <=10ns 11) Enclosure color: Black 12) Dimension: 25*25*86mm 13) Testing standard: IEC61643-21:2000
