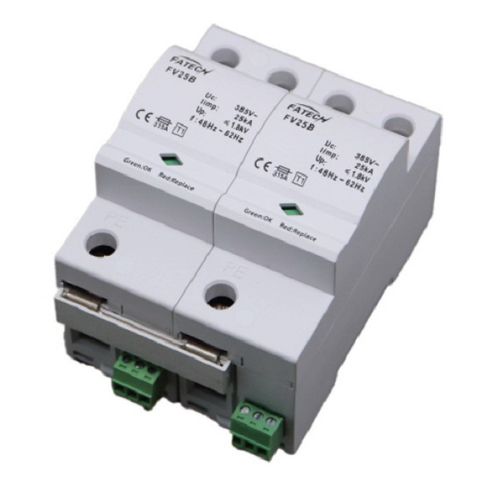

Type 1 surge arrester / single-phase / compact / DIN rail
FV25B/2-xxx S series FATECH ELECTRONIC (FOSHAN) CO., LTD

Characteristics

  • Type:

    type 1

  • Other characteristics:

    single-phase, compact, DIN rail

  • Current:

    25000 A

  • Voltage:

    Min.: 110 V

    Max.: 385 V

Description

- High impulse current multi-layer 1 phase type 1 25kA surge arrester.
- With indication window, with remote control contacts,
- Compact design,
-Used in the lightning protection zones concept at boundary LPZ0B-LPZ1,
-The core parts are spark gap with high discharge capacity,
-35mm2 DIN-rail in accordance with EN 50022/DIN46277-3,
-Low residual voltage and quick response.
-Protection mode: L-PE, N-PE.
