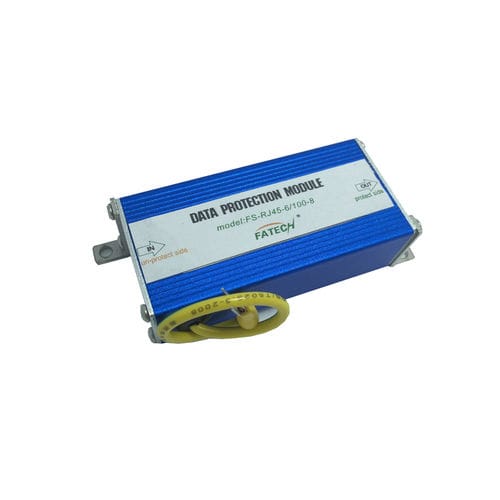

Type 3 surge arrester FS-RJ45 series
for data and telecommunication linesfor electrical networksfor signal transmission

type 3 surge arrester
type 3 surge arrester
Add to favorites
Compare this product


Characteristics

Type
type 3
Applications
for data and telecommunication lines, for electrical networks, for signal transmission, for telecom applications, for telecommunication networks, telecommunications
Other characteristics
RJ45, Power-over-Ethernet, with housing, low-voltage
Voltage

0 V

Max.: 8 V

Primary current

1,500 A

Max.: 3,000 A

Description

1. Description FATECH surge protectors for signal system are used for protection of information technology systems, and radio frequency systems, we also call signal surge protectors, or coaxial surge protectors. Signal surge protectors have two types, one is with pluggable module, and functional design for DIN rail, another one is regular signal surge protectors, which can give your computer network, telecommunication lines, cable lines and control lines reliable surge protection. 2. Characteristics 1) RJ45 surge protectors are applied to the protection against inductive over voltage, power interference & electrostatic discharge (ESD) for sensitive lines of telecommunications. e.g. computer network equipment, switches, routers, HUBs & MODEMs. 2) Convenient mounting 3) Low insertion loss, low residual voltage 4) Built-in semiconductor, quick response 5) Low capacitance design, excellent transmission 6) Can be designed and manufactured according to special requests of clients. 7) Transmission rate: 100M, 1000M for your option. 3. Electrical Parameters 1) Max. cont. operating voltage Uc: 8V 2) Interface: RJ45 3) Max. discharge current (8/20μs): 5KA 4) Nominal discharge current (8/20μs): 1.5KA 5) Type of Network: Network signal transmission system 6) Nominal voltage 50(60)Hz Un: 6V 7) Rated Current IL: 0.5A 8) Adapt transmission rate: 100M and 1000MBit/s 9) Mounting: Bolt fixing 10) Response Time tA: <=10ns 11) Housing material: Aluminium alloy 12) Operation temperature range / humidity / altitude: -40℃~+80℃/30%~90%/3000m 13) Protected Line (Pairs): (1,2);(3,6) / (1,2);(3,6);(4,5);(7,8)
