1. Description

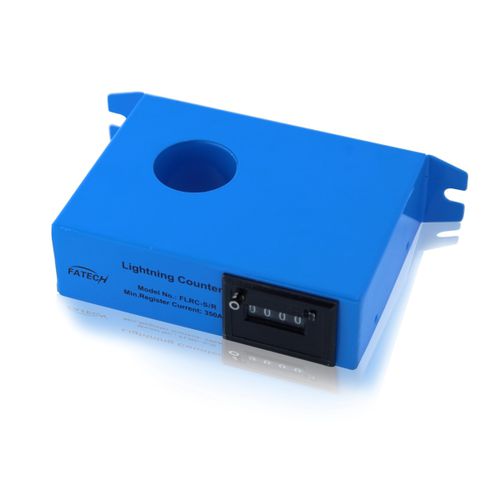

New outdoor Lightning Counter, analogue type, electromechanical 4 digits display, with reset function, no battery need. Installation window dia. 30mm. Metal plate enclosure.
2. Characteristics
1) Analogue type lightning counter.
2) 4 digits display (0~999999).
3) No need battery / power supply.
4) With reset function by press a button to clear the number "0".
5) Sensitive response and wide lightning current measuring range.
6) Metal plate. Easy installation and use.
7) Can be used together with all kinds of lightning protectors and equipment.
8) Installation window---30mm
3. Electrical Parameters
1) Dimension of installation window (mm): 30mm
2) Dimension of counter (mm): 110x33x82mm
3) Enclosure material: Metal Plate
4) Net weight: 0.46kg
5) Minimum Current Sensitivity (rise time ≥8μs): >350A
6) Indicator: Lightning Event 0~9999
7) Working mode: No battery / No power supply needed
8) Maximum Detectable Current (Imax): 100kA
9) Sequence of impulse: >1s
10) Current Sample Mode: Inductive Probe (Built-in)
11) Display Model: Electromechanical Counter
12) Operation temperature (℃): -20℃~+70℃
13) Reset function: Press one button to clear display number to "0"
