Angle joint

angle joint
angle joint
angle joint
angle joint
angle joint
angle joint
angle joint
Add to favorites
Compare this product


Description

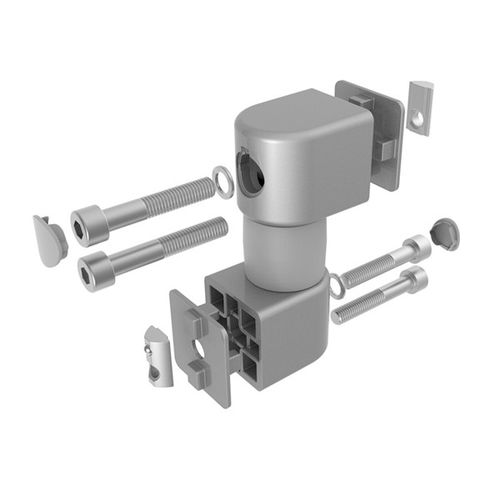

FATH FRICTION JOINTS: ENDLESS POSSIBILITIES FOR YOUR ASSEMBLY WORKSTATIONS Build your swivel arms in individual length and design with the FATH friction joints. The joints are featured with a fixed friction torque, which is available in 6 levels. Combine the different friction torques to adapt your system arm to your application. The axis of the FATH friction joints can be positioned both vertically and horizontally. This offers a wide range of new possibilities for providing tools and materials in an ergonomic and organized way. Just by pivoting, the finished system arm can be used multi-dimensionally to adapt to different working positions and workpiece, product or body sizes. Another Plus: Flexible Assembly The FATH friction joints can be attached to the profile lengthwise, crosswise or at the front side. The sets already contain the mounting material for the side mounting in the profile slot 8 or 10, as well as the frontal mounting on a profile piece with core hole M8. You can use the FATH cutting bush with shank 09308801 for reduction from a core hole ø 10.2 mm to M8 thread. When attaching on flat surfaces the included centering plates are simply not used. Easy Assembly and Each One in 6 different Versions… The assembly of the FATH friction joints is incredibly easy, because the openings for the fixing screws are easily accessible from the outside – the screws can simply be inserted through the joint halves to tighten the profile in the desired position. The fixing holes of the FATH friction joints will be covered with cover caps.
