Fully configured, factory assembled customized units
Non-metallic corrosion-resistant GRP housing
Mounting options include surface or 316 stainless steel ratchet adjustable trunnion-bracket
316 stainless steel dome guard included on visual signals
Features

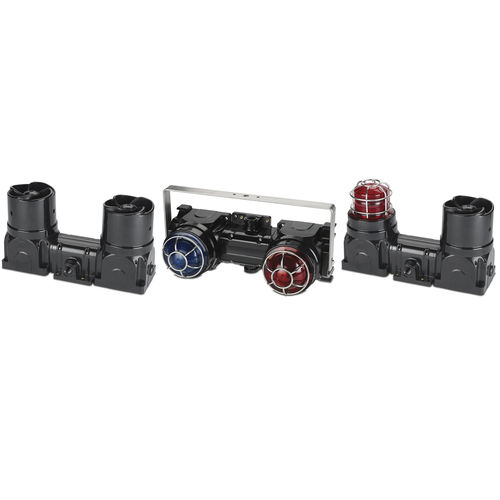

Federal Signal patented G-MSC Global Series® Dual Models allows two audible or visual devices to be combined as one complete assembly. This dual model offers a common increased safety “Ex de” field wiring chamber which greatly simplifies the installation and wiring of two signals. The dual signal can be surface mounted or mounted with an optional ratchet adjustable stainless steel mounting U-bracket.
Either of the devices can be wired to function independently or in tandem1. Two like devices can also be combined to support a redundant alerting system, simplifying installation of A/B redundant systems.
Refer to individual Global Series data sheets for additional information.
Dual unit certifications are dependent on models chosen. Certifications include:
IP66 enclosure (G-LED and G-STR units are IP69K)
Zone 1, 21 Rated, IECEx, ATEX, Ex d IIC, Ex de IIC and Ex tb IIIC
UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III
Audible devices: UL and cUL Listed for Class 1, Zone 1 AEx db IIC T4: Zone 21, AEx tb IIIC T4//135°C, excludes increase safety versions (Ex de)
Visual devices: UL and cUL Listed for Class 1, Zone 1 AEx db IIC T3: Zone 21, AEx tb IIIC T200°C, excludes increase safety versions (Ex de)
UL Fire Listed (24VDC, Clear Strobe and Sounder only)
