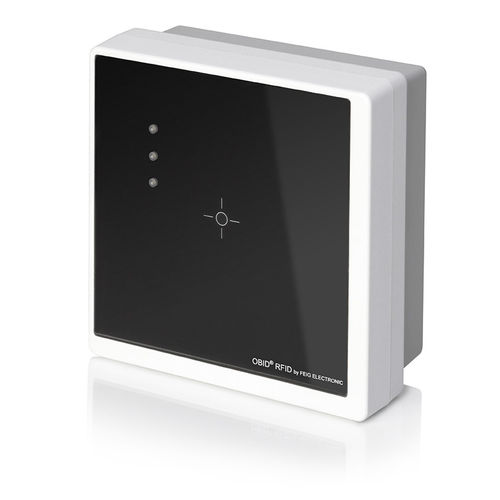

RFID Card Reader, Door Controller and Access Controller in one device
84,2 x 84,2 x 22 mm Card Reader
77,7 x 77,7 x 18 mm Wall-mounted housing
Integrated antenna
Interface: Ethernet 10BASE-T / 100BASE-TX, Automatic MDI/MDI-X Crossover correction, TCP/IP protokol, IPv4
Supply voltage: Power over Ethernet (PoE); alternative: ext. power supply 24V up to 48V DC +/-10%
Application focus:
Use in industrial and commercial installations as a part of a complex access control system with widely distributed access points. Furthermore it can also be used for single doors in small and medium-sized installations.
Features:
Offline management of more than 5.000 access permissions (Stand-alone operation)
AES-encrypted Ethernet-Data transfer
Multi-tag card reader (ISO 14443-A/-B and ISO 15693)
Identification via serial number or freely configurable data area
Real time clock & time zones
Configurable event memory
Also available for the reader: the software myAXXESS Manager for managing access authorizations for persons and vehicles in one and the same project.
