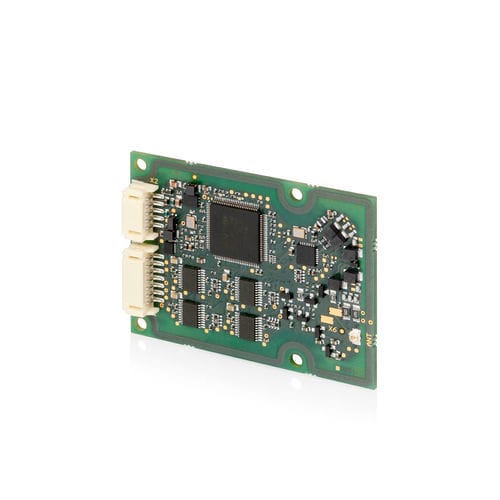

13,56 MHz Proximity Read-/Write device
Dimensions: 50 x 68 x 10 mm (8 mm for variant without SAM sockets) (WxHxD)
Operation with internal and external antenna (integrated multiplexer)
=> Two reading points in one device
Interfaces: RS232-TTL; USB Full Speed
Power supply: 5V DC +/- 5%
Supported transponders: ISO 14443, ISO 15693, ISO 18000-3M3
Typical applications:
Ticketing
ePayment
Public transport systems (e.g. VDV core application)
Supports NFC applications
Features:
Sockets for 4 Security Access Modules (SAM)
Integrated High Level support for mifare DESFire and mifare PLUS
