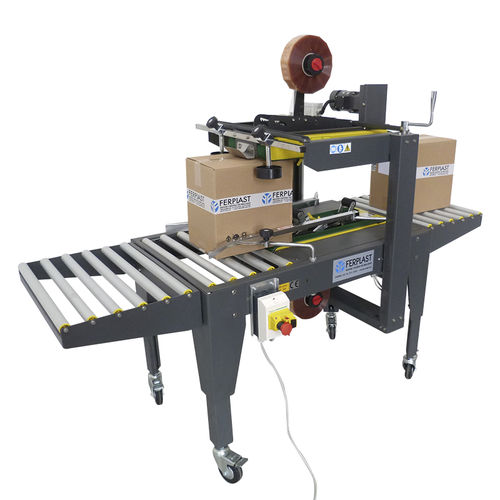

Semi-automatic carton sealer machine with upper and lower drive belts. Maximum width 500 mm boxes.
The two heads simultaneously apply a strip of tape taping above and below the box. Ideal for close fixed format boxes (with constant height and width). Structure of the body in painted steel.
Movement of boxes happens via two lower dive belts and two upper drive belts, adjustments for the different formats are carried out using flywheels.
The machine is equipped with idle rollers 400 mm length for loading and unloading.
The machine is equipped with wheels with brake.
FP 9037 TECHNICAL CHARACTERISTICS
Dimensions of the boxes to be taped (width x length x height) Min 200 x 150 x 100 mm Max 500 x unlimited x 500 mm
Tape width 50 mm (75 optional)
Tape type Polypropylene - PVC
Feed speed 20 mt./min
Power supply 220V 50HZ 1 Phase
Installed power 0.18 kW
Total machine dimensions Width 900 mm Length 1050 mm (1850 with roller conveyors) Height 1300-1700 mm (with taping head)
Worktop height 580-780 mm
Weight 92kg
Lower / upper drive belts
