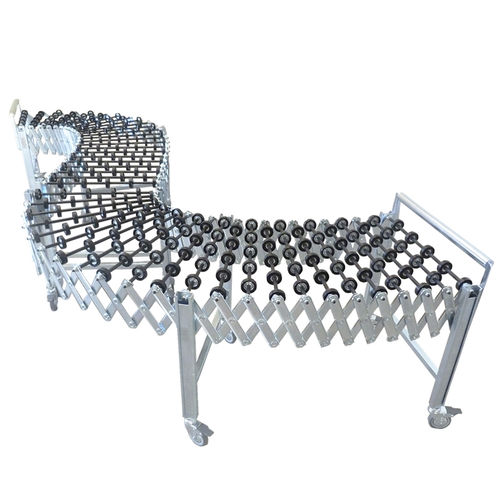

Skate wheel conveyor GRL

horizontalwith adjustable slopecurved

IDLE ROLLER CONVEYORS EXTENSIBLE WITH PLASTIC WHEELS Extendable roller conveyors with plastic wheels and galvanized steel pantograph structure for handling boxes, cassettes and packages with a flat base. They are normally positioned at the outlet of packaging machines and taping machines for the accumulation of packages and allow to realize different forms of route with curves up to 180 ° (depends on the length of the roller conveyor). The roller conveyors are equipped with supports with wheels with brakes and they are easily extendable and resealable, they can thus be moved and stretched, taking up very little space when not used. The movement of the boxes occurs by gravity and the box stopper terminal (included) avoid the fall. The roller conveyors with width mm. 800 are equipped with central pantograph to make the structure more robust. Standard supports are adjustable in height from mm. 650 to mm. 900 but on request you can have supports with height mm. 450-650 (same cost) or mm. 950-1250 with increase. The maximum capacity of the extending roller conveyors is to be considered valid up to 2/3 of their maximum extension. Beyond this extension, the capacity decreases by 50%. For the correct use of the extending roller conveyors it is necessary to lengthen the modules evenly. The products must be placed on the roller conveyor, distributing the weight along its entire length.
