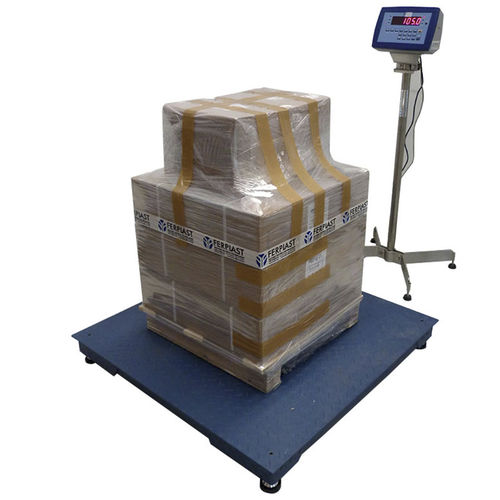

Platform scale EPFL Series
electroniccommercialmultifunction

platform scale
platform scale
platform scale
platform scale
platform scale
platform scale
Add to favorites
Compare this product

Go to the Ferplast website for more information

Characteristics

Type
platform, electronic, commercial, multifunction
Units of measurement
kg, g
Display
with separate indicator, with LCD display
Power supply
220 V
Material
stainless steel, steel
Protection level
IP67, IP65, IP68
Applications
industrial, for the food industry, for the chemical industry, for the pharmaceutical industry, for heavy loads, for bulk materials, for solid products, for the automotive industry, for the textile industry
Configuration
floor, compact
Other characteristics
four-cell, with printer
Weight range

Min.: 600 kg
(1,322.8 lb)

Max.: 3,000 kg
(6,613.9 lb)

Accuracy

200 g, 500 g
(7.055 oz, 17.637 oz)

Resolution

200 g, 500 g
(7.05 oz, 17.64 oz)

Weighing plate length

Min.: 1,000 mm
(39.4 in)

Max.: 1,500 mm
(59.1 in)

Weighing plate width

Min.: 1,000 mm
(39.4 in)

Max.: 1,500 mm
(59.1 in)

Width

Min.: 1,000 mm
(39.37 in)

Max.: 1,500 mm
(59.06 in)

Depth

Min.: 1,000 mm
(39 in)

Max.: 1,500 mm
(59 in)

Height

120 cm
(47.2 in)

Description

Monobloc electronic weighing platforms from the floor, simple, inexpensive and reliable. CE-M approvable. The FLOOR series scales are normally used in industrial and commercial areas of all kinds for weighing pallets, boxes or packages. They can be installed in the floor or on an already existing packaging lines. The scales are available in standard version or with approved CE-M load cells for sale to third parties. TECHNICAL FEATURES PLATFORM WEIGHING · Fitted with 4 shear-beam load cells of 350 ohm nickel-plated steel, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection. · Monoblock tubular oven-painted steel, with adjustable resting feet and level. · Lobed fixed load floor, sheet steel. · Power Max. 15 Vdc. · Hermetic junction box, IP67 wiring with 3m shielded cable for connection to the indicator.
