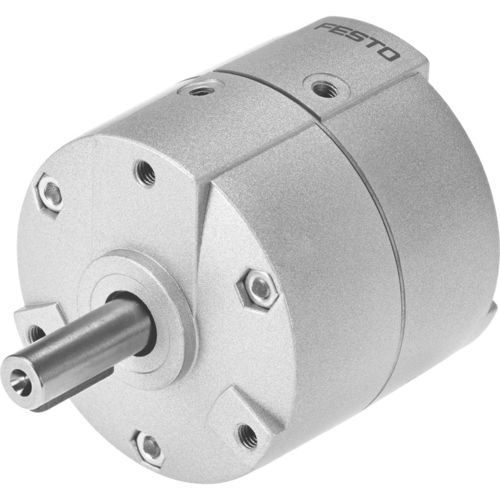

Semi-rotary actuator DRVS series
pneumaticrotary vanedouble-acting

semi-rotary actuator
semi-rotary actuator
semi-rotary actuator
semi-rotary actuator
semi-rotary actuator
semi-rotary actuator
semi-rotary actuator
semi-rotary actuator
Add to favorites
Compare this product


Characteristics

Movement
semi-rotary
Type
pneumatic
Technology
rotary vane
Configuration
double-acting
Protection class
IP65, IP68
Other characteristics
quarter-turn, oscillating
Pressure

Min.: 3.5 bar
(50.8 psi)

Max.: 8 bar
(116 psi)

Force

Min.: 10 N

Max.: 350 N

Torque

Min.: 0.15 Nm
(0.111 ft.lb)

Max.: 20 Nm
(14.751 ft.lb)

Ambient temperature

Min.: 0 °C
(32 °F)

Max.: 60 °C
(140 °F)

Description

Light and elegant: double-acting semi-rotary actuator with rotary vane. • Double-acting rotary vane actuator • Lighter than other quarter turn actuators • Fixed swivel angle, adjustable swivel angle possible with the help of accessories • Housing protected against splash water and dust • Sustainable in production due to reduction of material use
