semi-mobile concrete batching plant / compact / automatic
F500 fibo intercon

{{requestButtons}}

Characteristics

  • Mobility:

    semi-mobile

  • Other characteristics:

    compact, automatic

  • Capacity:

    Min.: 4 m³/h (141.26 ft³/h)

    Max.: 5 m³/h (176.57 ft³/h)

Description

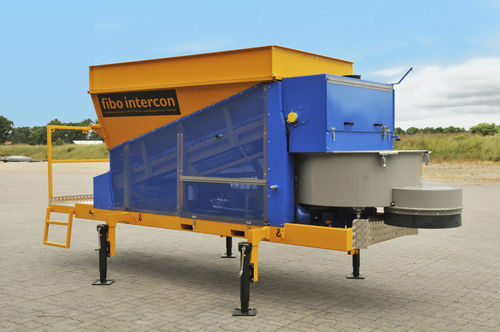

This compact, semi-mobile batching plant has a capacity of 4-5 M³/h.

The batching plant is assembled on a joint steel frame with adjustable support feet.

Agitator pan mixer. Integrated twin hopper for 2 types of aggregate. 2 separate feed belts. Water supply. Load cells. Dosing equipment and control unit with batching computer.

The batching plant is delivered with a high-pressure cleaner.

Advantages:
- Great economy
- Highly flexible solution with great performance
- Can be moved as required and
- It weighs only 3400 kg
- Requires no poured foundation and is easy to erect and make ready for production
- Integrated operating system with a dosing accuracy of +/- 1-2 %
- The operating system requires no previous knowledge and can be delivered with the language version desired
- Low operating costs
- Easy to clean with a high-pressure cleaner
- Easy to maintain and service
