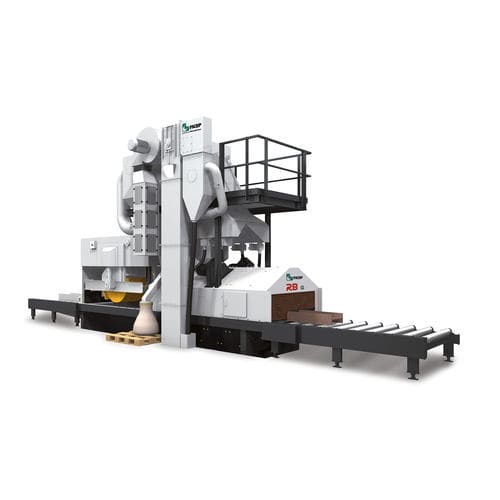

Roller conveyor shot blasting machine RB G series

for profilescompactturbine

Shotblasting systems The RB G series shotblasting machine is the most classic of all. Straight wheels, a compact blast chamber, reduced layout space and the highest performance in shotblasting due to our TITAN ETA wheel technology. In fact, this machine is equipped with our TITAN ETA wheel technology which allows for a well distributed shot pattern, called the hotspot, for an incredible surface treatment feature. SHOTBLAST WHEEL RB G lines are equipped with up to eight Roto-Jet TITAN 5.3 ETA blast wheels offering excellent blasting performance and unbeatable service life as the main blast components are made of hardened tool steel. SHOTBLAST CABINET The shotblast cabinet is completely manufactured from manganese, an extremely hard material. This surface can deal with shotblasting from 35HRC to more than 50HRC. In the hot spot area, an additional 10mm (3/8”) thick manganese plates are added. ABRASIVE REMOVAL UNIT Rotating brushes remove the shot left on the workpiece after the blasting process. A rotating screw conveyor is integrated to bring the shot back into circulation.
