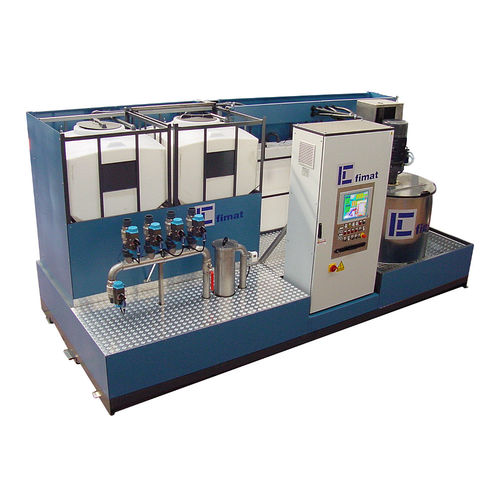

Liquid dosing unit Tetragon 1000
cartridgeautomatichopper

liquid dosing unit
liquid dosing unit
Add to favorites
Compare this product


Characteristics

Product
liquid
Type
cartridge
Other characteristics
automatic, hopper, pneumatic

Description

The machine is composed by a mono-block compact that includes: • Support frame steel made • N. 6 stocking tanks for liquid auxiliaries, capacity 1 50 l. (predisposed for other additional future tanks) • N. 2 stocking tanks for synthetic thickeners, capacity 1 000 l. (predisposed for other additional future tanks) • N. 8 pneumatic pumps to collect and dose liquid auxiliaries and synthetic thickeners • N. 8 automatic dosing valves for liquid auxiliaries and synthetic thickeners • Cartridge filters • PVC connection piping between tanks and thickeners preparing unit • N. 1 Thickeners Preparing Unit mod. CM 1 000 installed on loading cells • Power and control electric switchboard • Personal computer with dedicated software for recipes management and weighing control • N. 1 volumetric pump to load thickeners to the stocking tanks (external) • N. 1 bag filter mod. AD 1 5 for thickeners • Stainless steel Aisi 304 connection piping from preparing unit to sending collector • Automatic valves to send thickeners to stocking tanks (external) Powders Modules • Support frame steel made • N. 1 hopper, stainless steel Aisi 304 made, capacity 500 l., complete with bridge breaker • N. 2 hoppers, stainless steel Aisi 304 made, capacity 250 l. each, complete with bridge breaker • N. 3 spiral flexible transporters Ready Paste Stocking Module • Support frame steel made • Stocking tanks, PE made, capacity 2000 lit., for ready paste • Sending volumetric pump to dosing unit • Overpressure valves
