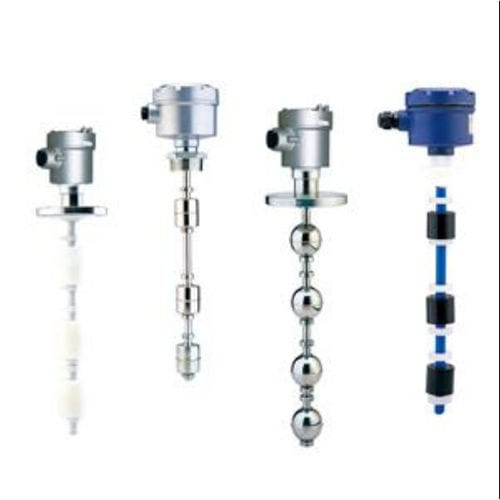

Magnetic float level switch FD series
for liquidsfor chemicalsfor marine applications

magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Medium
for liquids
Applications
for chemicals, for marine applications
Material
stainless steel, aluminum
Mounting
vertical
Other characteristics
reed switch, high-temperature, IP65, explosion-proof
Process temperature

Max.: 200 °C
(392 °F)

Min.: -20 °C
(-4 °F)

Description

The FC/FD Series is a magnetic float level switch product line. They are top mounted units designed to provide cost-effective multiple switch points using a single entry point into the vessel. The FC/FD series is a magnetic float level switch product line based upon two principles, buoyancy and magnetism. The floats of the FC/FD magnetic float level switch are designed for a specific minimum fluid density (specific gravity), based upon the volume and weight of the float elements. The floats contain a magnet and the stationary stem can incorporate the reed switches corresponding to each float. The reed switches open or close their electrical contacts when the magnetic element in the floats come in contact with the reed switch locations in the stem. The reed switches will reverse their contact state when the magnet in the float element moves away from the location of the reed switches in the stem. The FC/FD float level switch is more cost effective than competing technologies when multiple switch points are required from a single point of entry in a vessel. 。Single or Multiple point liquid magnetic float level switch customized to your application 。Simple installation and high reliability 。Cost-effective design 。High temperature and explosionproof units available 。Marine grade approval USE 。High, low and intermediate float level switch applications for tanks and other vessels 。Wide range of liquids with minimum density of 0.45 S.G. 。Multiple switch points with single mounting point INDUSTRY 。Water/wastewater 。Chemical 。Marine use 。Many others
