Optical / electrical converter
HFD3081-103
Finisar

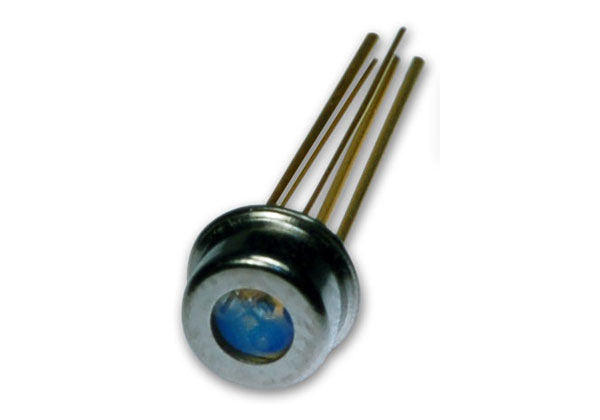

850nm, TO-46 Flat window component, PIN+Preamp, differential output, with RSSI, 2.5 Gb/s (HFD3081-103)
The HFD3081-103 converts optical power into a differential output electrical signal that is used in fiber optic communications and other applications. As the light increases, the differential output voltage increases, limiting at input powers above -10dBm. The differential output is designed to be AC coupled into a data amplifier. The component requires alignment in a lens system which
focuses the light onto the photodiode active area.
The HFD3081-103 is designed to interface with 50/125 and 62.5/125mm multimode fiber.
The HFD3081-103 converts optical power into a differential output electrical signal that is used in fiber optic communications and other applications. As the light increases, the differential output voltage increases, limiting at input powers above -10dBm. The differential output is designed to be AC coupled into a data amplifier. The component requires alignment in a lens system which
focuses the light onto the photodiode active area.
The HFD3081-103 is designed to interface with 50/125 and 62.5/125mm multimode fiber.
