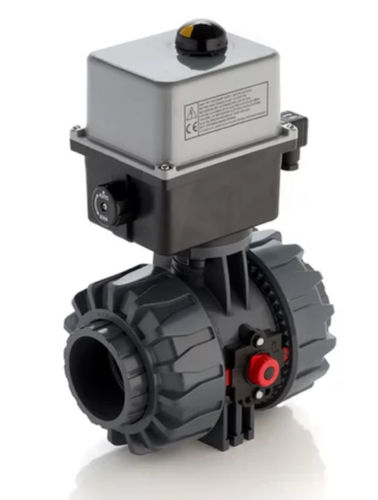

Ball valve VKD/CE
electrically-actuatedcontrolfor water

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-actuated
Function
control
Media
for water
Body
flange, threaded, weld, stainless steel, PVC
Applications
for industrial applications, industrial
Number of channels
2-way
Other characteristics
ISO, standard
DN

Min.: 65 mm
(2.559 in)

Max.: 100 mm
(3.937 in)

Pressure

16 bar
(232.1 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 140 °C
(284 °F)

Description

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications. In addition to manually operated version, the VKD is also available in configuration with electrical actuator VKD/CE or pneumatical actuator VKD/CP. The actuators are firmly connected to the valve with a special module Power Quick made by FIP entirely produced in technopolymer PP-GR. The VKD/CE and VKD/CP are produced using actuators complying with current regulations and selected by FIP according to its requirements of quality and reliability. The efficiency of these valves, tested according to the company quality standards, is guaranteed by the expertise and know-how that FIP dedicates to the manufacture of its products. • Connection system for solvent weld, threaded and flanged joints • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites • Option of dismounting downstream pipes with the valve in the closed position • Full bore ball with high surface finish • Integrated bracket for valve anchoring • Pneumatic or electric actuators installed by applying an ISO standard bore PP-GR flange • STAINLESS steel co-moulded stem, with square section as per ISO 5211
