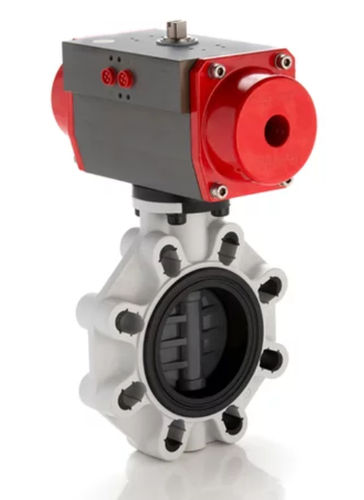

Butterfly valve FK/CP

pneumatically-operatedshut-offregulating

The FK is a butterfly valve for shutting off or regulating flow, with structural characteristics that make it ideal for industrial applications requiring high performance and long-term reliability. This valve is also equipped with the customisable Labelling System. In addition to manually operated version, the FK is also available in configuration with electrical actuator FK/CE or pneumatical actuator FK/CP. FK/CE and FK/CP are produced using actuators complying with current regulations and selected by FIP according to its requirements of quality and reliability. • Interchangeable Disk in PVC-U with through shaft, available in different thermoplastic materials: PP-H, PVC-C, ABS, PVDF • Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40÷200 Medium Series 25, DN 250÷ 300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN 65÷200 K2, DN 250÷300 K3) • Can also be installed as an end line valve, bottom discharge valve or tank dump valve • Special Lug version PN 10 fully drilled to DIN 2501 or ANSI B16.5 cl.150 with molded-in AISI 316 stainless steel threaded inserts • Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard drilling PP-GR flanges. DN 40÷200 valve fitted with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, F07, F10. DN 250÷300 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components drilled according to standard ISO 5211 F10, F12, F14
