Radio receiver module VisorAlarm Plus

IP

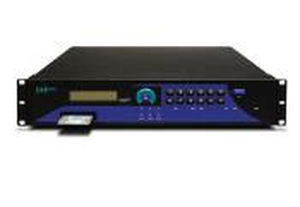

The VisorALARM PLUS IP receiver is Teldats solution to manage and receive alarms from burglar and/or fire alarm panels equipped with Honeywell Powers MIP or Fire-Lite Alarms IPDACT modules. Each receiver supports up to 3,000 alarm panels and provides the industrys most advanced set of features including line supervision, 512 bit encryption and a three level redundancy system for the highest possible availability and reliability levels. Scalability: Simultaneous management for up to 3,000 MIP and IPDACT IP remote devices. Line monitoring: Monitors connectivity status with all registered devices. Network access monitoring: Monitors the status of its network access to avoid generating false technical alarms under a communications failure situation. Support for dynamic and static IP addresses on the remote MIP and IPDACT devices. Encryption: Uses 512 bit AES encryption algorithm for all communications with installed IP modules. Communicates alarms to the automation server via a serial connection, using Contact-ID format and emulating Sur-gard, Radionics or Ademco receiver protocols. Smart card: Saves all configuration information on an external smart card that can be used for immediate system replacement under crash recovery situations. Secondary receiver support: Two VisorALARMs PLUS can be setup in a primary/secondary configuration for high availability and redundancy options. Teldats MIP and IPDACT units in the field will report to the primary unit and will automatically switch to the secondary receiver if the primary becomes unavailable.
