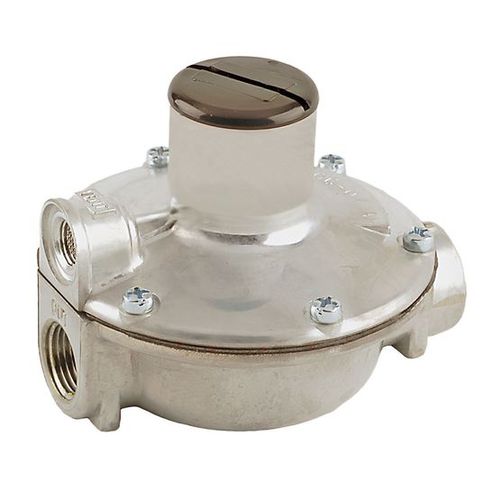

gas pressure regulator / single-stage / diaphragm / spring
912N series FISHER REGULATORS

{{requestButtons}}

Characteristics

  • Product:

    for gas

  • Number of stages:

    single-stage

  • Technology:

    diaphragm, spring

  • Other characteristics:

    direct-operated

  • Pressure:

    0.21 bar, 1.4 bar (3.05 psi)

  • Orifice diameter:

    Min.: 0.25 in

    Max.: 0.38 in

Description

The direct-operated and spring-loaded 912N Series are regulators that are best suitable for different industrial applications and services. To lessen its overpressure, the 912N has a limited-capacity internal relief across its diaphragm.

If there are above outlet pressure than the usual start-to-discharge point of the non-movable relief valve spring it then it pushes the diaphragm from the relief valve seat, this also permits excess pressure to seepage out towards the screened spring case vent. These regulators are made to give precised, sensitive control that is best used for different applications.
