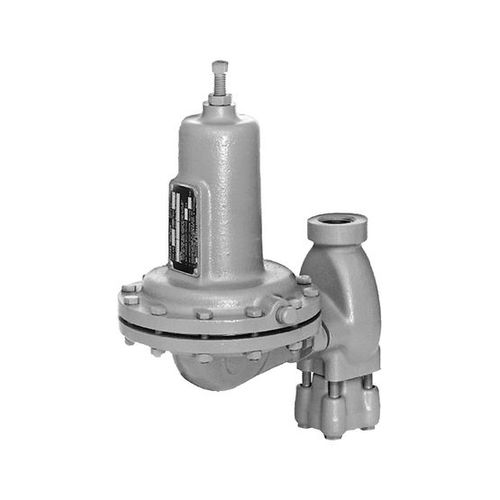

Gas pressure regulator 630for airmembranesingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- gas, for air
- Technology
- membrane
- Number of stages
- single-stage
- Applications
- industrial, high-pressure, low-pressure
- Other characteristics
- rugged, direct-operated
- Pressure
0.21 bar, 34.5 bar, 103 bar
(3.05 psi, 500.38 psi, 1,493.89 psi)- Flow
Max.: 322 m³/h
(11,371.32 ft³/h)Min.: 5 m³/h
(176.57 ft³/h)- Orifice diameter
25 mm, 50 mm
(0.984 in, 1.969 in)- Temperature
Max.: 82 °C
(179.6 °F)Min.: -29 °C
(-20.2 °F)
Description
Fisher Type 630 Big Joe™ regulators are direct-operated, spring-loaded, pressure reducing regulators available in NPS 1 & 2 / DN 25 & 50 body sizes designed for maximum inlet pressures to 1500 psi/103 bar and outlet pressures from 3-500 psi/0.21-34.5 bar. Type 630 can be used with natural gas, air, or a variety of other gases for such applications as first-stage farm-tap or high-pressure industrial regulators. They can be converted to a relief valve in the field.
Features
-High-Pressure Capabilities
-Rugged Construction
-Better Low-Pressure Control
-Sour Gas Service Capability
