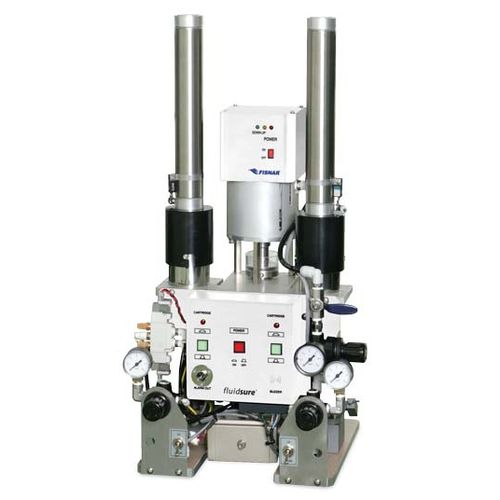

Chemical pump EP1320C

electriccartridgestationary

The EP1320C 1/10 Gallon Dual Cartridge Pump System is a powerful, medium-ratio system for controlled fluid transfer from 1/10th gallon (310 ml) plastic cartridges. Suitable for silicone-type fluids, this low-pulse pump design can be used with a dispense valve or connected to an automatic production robot for controlled dispensing applications. The EP1310C is designed to easily transfer material for controlled dispensing via a high pressure valve, providing a maximum of 995 psi regulated material pressure. The cartridge is contained with a metal-jacketed cylinder. • Material delivered air-free • Wipe-clean action • High-pressure regulation • Pressure piston assist with adjustable piston pressure • Electrical extruder motor • Simple load mechanism also provides easy cleaning and easy automatic systems hook up • Size : 8.86 x 6.69 x 25.55” (225 x 170 x 649 mm) • Pump Input for Sensing : 220 VAC 50 - 60 Hz - 20 watts • Air Input Pressure : 30 - 100 psi • Maximum Output Pressure : 995 psi • Fluid Viscosity Range : 10,000 - 600,000 cps • Ratio : 15 • Minimum Volume / Stroke : 0.01 cc / shot • Air Consumption : 80 I / min • Cartridge Size : 300 - 310 ml • Air Inlet / Fluid Outlet Size : 1/4” NPT (f) • Wetted Parts : 304 and 17-4 ph Stainless Steel, PTFE, Viton®, and PEEK seals • Weight : 15 kg
