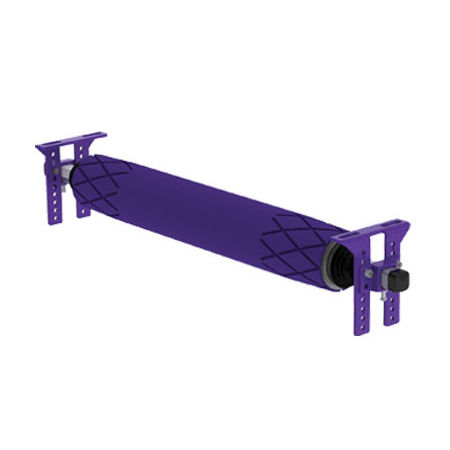

Conveyor belt tracker PTEZ™ series

The PTEZ™ Belt Trainer provides Flexco yet another high-performance tracking idler at an economical price point. Employing our unique “pivot and tilt” feature using our patented PTEZ mechanism, the unit responds and compensates immediately to belt misalignment using the tapered end roller profile to engage the training action. This ensures that the belt stays away from the structure and the material stays on the belt without the use of sensor or edge rollers. As a result, the PTEZ may be used in nearly any application to provide tracking and prevent damage to the belt or structure. • Standard- and heavy-duty models • Works with mechanically fastened and vulcanized belts, in wet or dry conditions • Simple, adjustable mounting brackets ensure quick and accurate installation • Maximum Belt Tension: • Standard Duty: 1600 PIW (280 N/mm) • Heavy Duty: 2400 PIW (420 N/mm) • Belt speeds up to: • Standard Duty: 1000 fpm (5 m/sec) • Heavy Duty: 1400 fpm (7 m/sec) • Belt widths from 18" to 84" (450 to 2100 mm) INSTALLATION - Single direction or reversing belts - Return side installation
