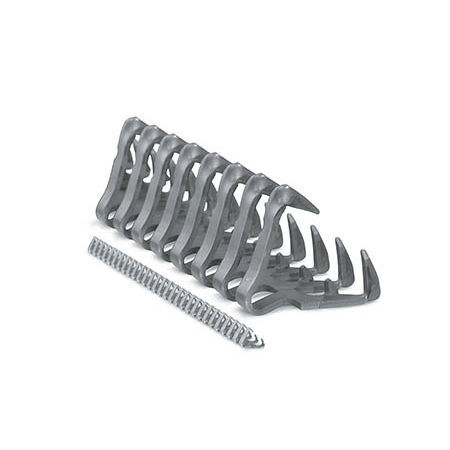

Light-duty conveyor belt fastener ALLIGATOR®

stainless steel

The Alligator® Lacing Fastening System is ideal for easy, economical installation of a low-profile belt splice. Available in continuous lengths, the system fits any belt width and provides uniform tension across the full belt width. • Mechanical fastener rating up to 200 PIW (35 kN/m) • Belts up to ½” (13 mm) thick • Minimum pulley diameter from 1-14” (25 mm-350 mm) • Engineered to prevent pieces from working loose from the belt and into the product • Removable hinge pin allows for easy cleaning and sanitation of belts • Teeth embed lengthwise in the belt, providing a strong, vice-like hold. INSTALLATION METHOD • Portable tooling • Hand installation • Agriculture
