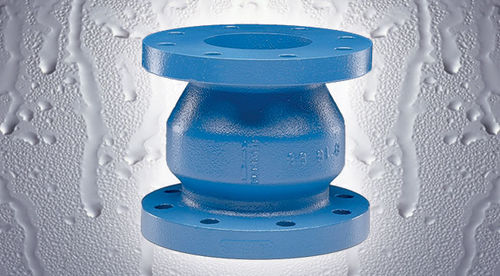

Poppet check valve 402BT2, 402BTR2flangestainless steelcast iron
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Body
- flange
- Material
- stainless steel, cast iron
- Other characteristics
- silent
- DN
Min.: 2 in
Max.: 16 in
- Pressure
Min.: 0 psi
Max.: 400 psi
- Temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)
Description
Pressure Max: 400 PSI: 2"-12", 300 PSI: 14"-16"
Temp Max: 180°F (80°C)
Cast iron body with epoxy coating. Flanged connection ANSI B126.1, class 250. Metal to metal seating with stainless steel spring.
Note: Viton seal 2-12, 14-16 NITRILE (Buna-N). For Model 402BTR add R to end of part number & 10% to list price.
