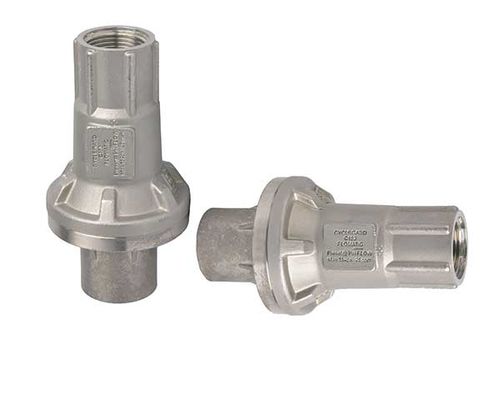

Pressure-control valve C153
for waterstainless steelfor pumps

pressure-control valve
pressure-control valve
Add to favorites
Compare this product


Characteristics

Function
pressure-control
Media
for water
Body
stainless steel
Applications
for pumps
Pressure

Min.: 0 psi

Max.: 400 psi

Temperature

Min.: 0 °C
(32 °F)

Max.: 80 °C
(176 °F)

Flow rate

Min.: 1 us gal/min
(3.79 l/min)

Max.: 25 us gal/min
(94.64 l/min)

Description

Temp Max: 180°F (80C) Pressure Max: 400 PSI Factory set at 50 PSI For 40 PSI add A to end of part number or 60 PSI add B Reduces rapid pump cycling and maintains a preset system operating pressure independent from low or high flow conditions. Valve body is all 316 stainless steel female NPT connection. Supports a hanging load up to 3,400 lbs. and fits in 4" well casing. Flow rates for 1-25 GPM.
