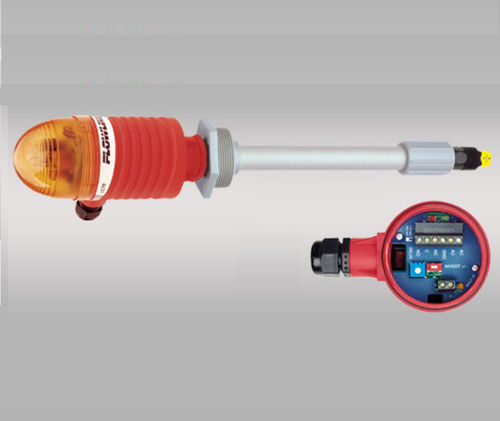

Vibrating level switch Switch-Pak™ AX13 series

ultrasonicfor waterfor oil

The general purpose level switch package provides high or low liquid level detection with one 16A compact relay controller for pump or valve shut off. The optional flash alarm brings attention to alarm conditions. Available in three level sensor technologies, choose the sensor type based upon your application media. Select ultrasonic for chemicals and light weight oils; vibration for wastewater with light coating or scaling; and buoyancy for clean water and non-coating chemicals. This PP or PVDF level switch package is selected for bulk storage, IBC or drum, and neutralization tank applications, requiring detection and control. FEATURES Fail-safe relay shut off of pumps or valves with adjustable time delay Offered in three sensor technologies for broad application coverage Rugged polypropylene or PVDF construction for use with corrosive liquids Easy setup with LED indicators for sensor, power and relay status Optional strobe brings immediate attention to level alarm conditions PP enclosure rated NEMA 4X with swivel base for conduit alignment Invert switch changes relay state from NO to NC without rewiring Accuracy: ± 1mm in water Repeatability: ± 0.5mm in water Orientation: ± 20° vertical Switch points: 1 (factory set) Supply voltage: 120 / 240 VAC @ 50-60 Hz. LED indication: Sensor, power & relay Consumption: 0.25A maximum Strobe type: -X22X: N/A, -X21X: xenon tube Strobe flash: -X22X: N/A, -X21X: 1 per second Contact type: (1) SPDT relay Contact rating: 250 VAC @ 16A Contact output: Selectable NO / NC Contact delay: 0.15 – 60 seconds
