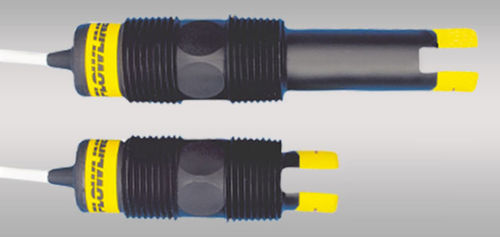

Ultrasonic level switch Switch-Tek™ LU10 series

for fuelfor corrosive liquidsfor tank

CSA approved for use in hazardous locations, the intrinsically safe ultrasonic liquid level switch provides high or low liquid level detection of chemical, solvent or low viscosity petroleum based liquids with a 1A relay output. Media examples include hydrochloric acid, acetone and diesel fuel oil. The submersible PP or PFA level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller. FEATURES CSA approved intrinsically safe for use in hazardous environments Submersible PP or PFA Teflon® sensor and cable for corrosive liquids 60VA SPST relay selectable NO or NC via power supply wiring polarity Compatible with Smart Trak and Switch-Pak installation fittings Orientation: Universal Accuracy: ± 1mm in water Repeatibility: ± 0.5mm in water Supply voltage: 12-36 VDC Consumption: 25 mA maximum Contact type: (1) SPST relay Contact rating: GP: 60 VA, IS: 32 VDC @ 0.5A Contact output: Selectable NO / NC Sensor rating: -1XX5: NEMA 6 (IP68), -2XX5: NEMA 4X (IP65) Sensor material: -1XX5: PP, -2XX5: PFA Cable jack. mat.: -1XX5: PP, -2XX5: PFA Cable type: 4-conductor, shielded, #22 AWG Cable length: 10’ (3m) Process mount: 3/4” NPT (3/4”” G / Rp) Mount. gasket: Viton® Classification: Intrinsically safe Certificate: CSA, LR 79326 Compliance: CE Approvals: Class I, Groups A, B, C & D; Class II, Groups E, F & G; Class III
